Flange types
A complete connection range for standard piping layouts and engineered assemblies.

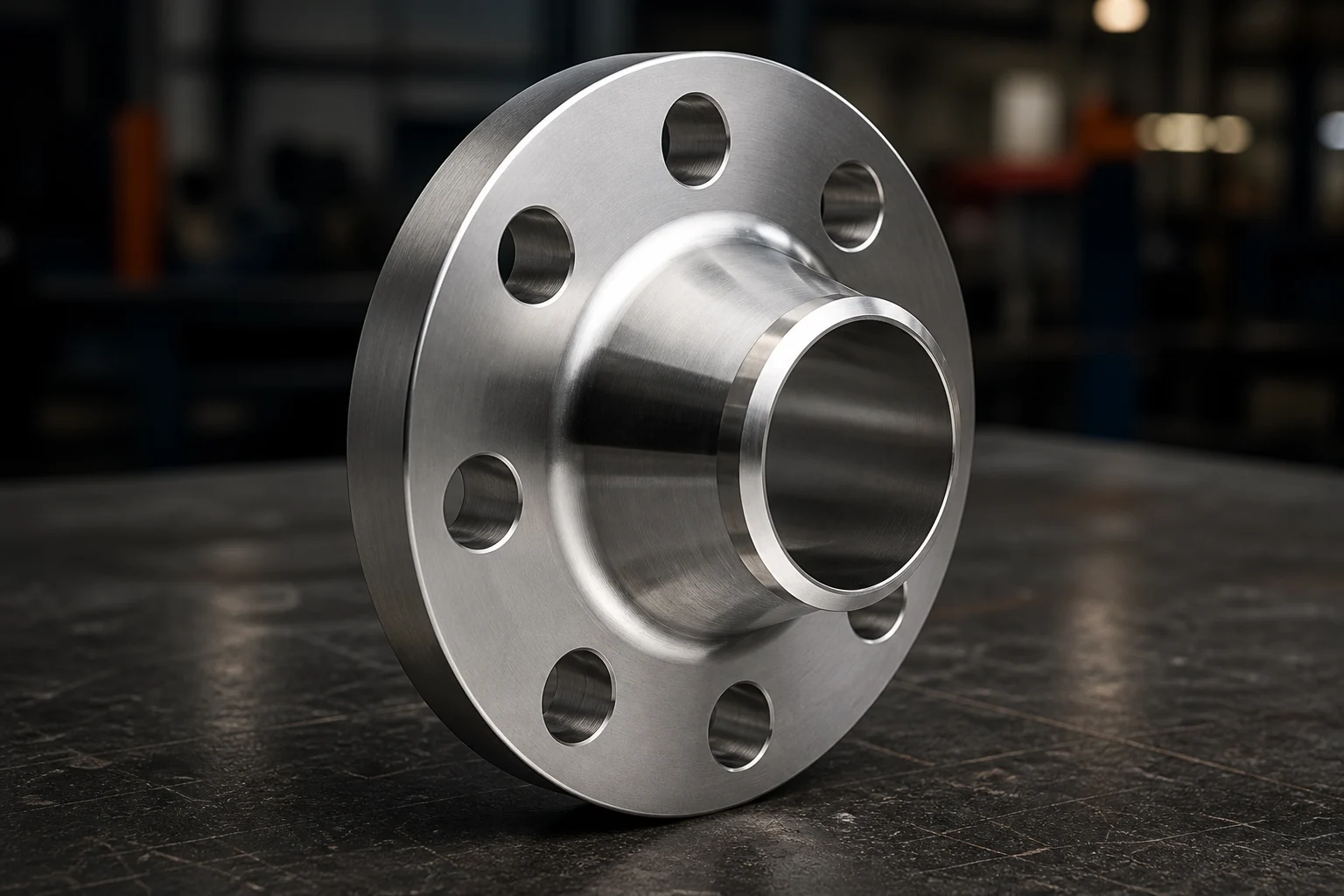

- Weld neck and slip-on
- Blind and reducing
- Socket weld and threaded
- RTJ, lap-joint and orifice
Petro AroForged connection systems
Flanges thathold pressure.
Forged flange solutions for joining pipe to valves, pressure vessels, pumps and other critical process equipment.
2-60 insize coverage
Class 150-2500pressure classes
ASME / NACEdesign basis
01
Product coverage
Forged connection systems
Materials
Forged carbon, low-temperature, alloy and stainless-steel grades selected around the service environment.
- ASTM A105
- A350 LF2 / LF3
- A182 F-series
- A694 F52 and stainless grades
Standards & facing
Dimensions, drilling and facing aligned to the applicable line class and mating equipment.
- ASME B16.5
- ASME B16.47
- ASME B16.36
- RF, FF and RTJ facing
Match every mating detail
Specify type, nominal size, class, material grade, schedule or bore, facing, finish, bolt-hole orientation, corrosion allowance and NACE requirement.
Petro Aro
Have a flange requirement?
Send the line class, flange schedule and quantity for a technically aligned quotation.
